瓦楞貼面機

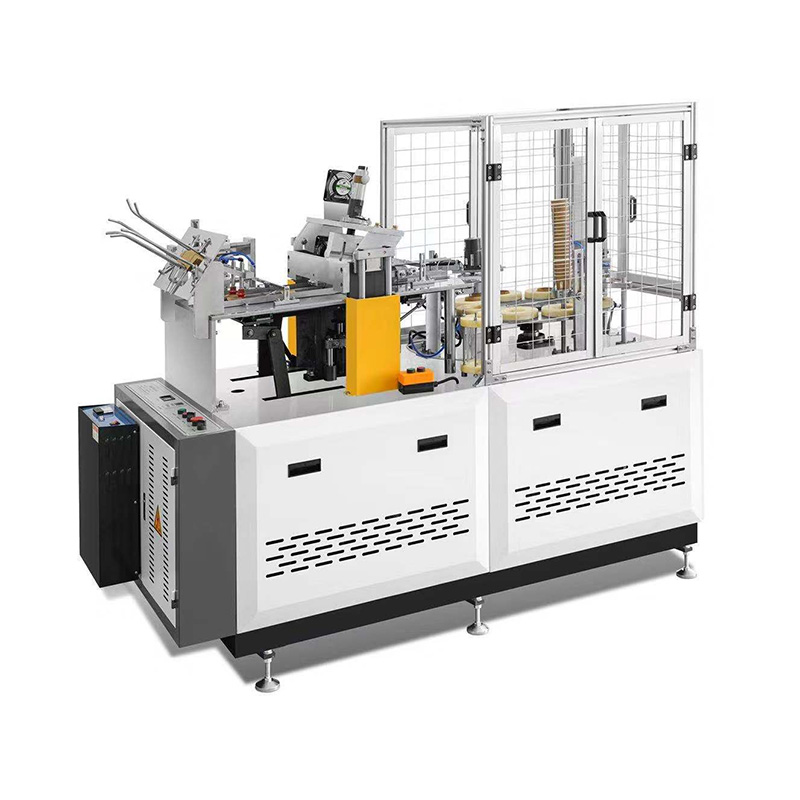

發布日期:[2018-08-06] 點擊率:Model WT-30 Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second wall sleeve over the inner-cup/bowl(cup/bowl by paper cup/bowl machine).wear a sleeve around the paper cup/bowl.
It is the matching equipment of (ZB0A12) Paper Cup Machine &( ZW-A35),Paper bowl machine,which has the function as photo cell detectioin,failure alarm,counting etc.
It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve)feeding,sleeve cone-body sealing(by ultrasonic wave),water-glue sprying (spray glue inside the cone-sleeve),cup./bowl feeding (absorb cup into the cone-sleeve),inserting and bonding sleeve to the cup collecting with the function of photo electric detection,fault alarm,and count.
It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeves cups, bollow-sleeve cups etc. he sleeve-wrapped paper cups are popular for hot drinks tea coffee, etc
全自動紙杯(紙碗)外貼機是緊跟市場需要而開發設計的,是zb-A12型紙杯機和ZW-A35型紙碗機的配套設備。具有自動送紙(印好的外套扇型片)超聲波封合(形成外套層)噴膠(在外套內壁)、下碗/杯(已經做好的內層用紙杯、紙碗)外套與紙碗自動粘合以及光點檢測、故障報警、計數等功能、工藝先進、設計合理、設備操作、維護方便。
全自動紙杯/碗外貼機的工作原理是在做好的紙杯、紙碗外再套上一層(隔熱)、用于生產雙層紙杯(咖啡果凍紙杯、瓦楞紙杯、香飄飄奶茶兩層紙杯等)或兩層紙碗(如:康師傅方便面碗、統一方便面碗等)
主要技術參數:Main technical parameters
紙杯規格:6-16盎司紙杯:20-50盎司紙碗(模具可調換)
paper cup size :6-160zcup/20-500z bowl (mold exchangeable)
紙質原料:PE淋膜紙,瓦楞紙以及其他類似淋膜紙(170-350)克
raw material:pe paper ,varnishing printed paper ,or other film coatde paper (can be sealed by ultrasonic) suitable paper weight:170-350gsm,(recommend 250-300gsm)
生產速度:40-50/分鐘
rated productivity:40-50 paces/minute
電源要求:220V 50HZ 和380V 50HZ 都可使用
power source:220v 50hz/380v 50hz or other required
總功率:4KW
Total power:4kw
機器重量:1000kg
total weight :1000kg
外形尺寸:長*寬*高2200*1100*1600mm
package size (l*w*h) 2200*1100*1600mm
