全自動紙杯（紙碗）外套粘合機

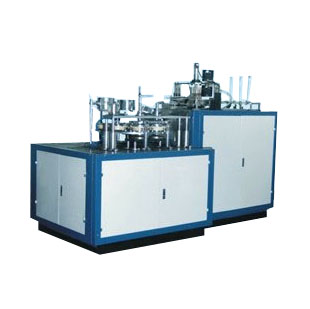

Wt-30 Paper Cup/Bowl Sleeve Machine Description:

Model WT-30 Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second wall sleeve over the inner-cup/bowl(cup/bowl by paper cup/bowl machine).wear a sleeve around the paper cup/bowl.

It is the matching equipment of (ZB0A12) Paper Cup Machine &( ZW-A35),Paper bowl machine,which has the function as photo cell detectioin,failure alarm,counting etc.

It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve)feeding,sleeve cone-body sealing(by ultrasonic wave),water-glue sprying (spray glue inside the cone-sleeve),cup./bowl feeding (absorb cup into the cone-sleeve),inserting and bonding sleeve to the cup collecting with the function of photo electric detection,fault alarm,and count.

It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeves cups, ollow-sleeve cups etc. he sleeve-wrapped paper cups are popular for hot drinks tea coffee, etc

全自動紙杯（紙碗）外套粘合機是緊跟市場需要而開發設計的，是ZB-A12型紙杯機和ZW-A36型紙碗機的配套設備。具有自動送紙（印好的外套扇形片）、超聲波縫合（形成外套層）、噴膠（在外套內壁）、下碗/杯（已經做好的內層用紙杯，紙碗）、外套與紙碗自動粘合以及光電檢測、故障報警、計數等功能。工藝先進，設計合理，設備操作，維護方便。

全自動紙杯（碗）外套粘合機的工作原理是在做好的紙杯、紙碗外再套上一層（隔熱），用于生產雙層紙杯（咖啡果凍紙杯=香飄飄奶茶兩層紙杯等）或兩層紙碗（如：康師傅方便面碗，統一方便面晚等）。

主要技術參數 Main Tehinical Parameters

紙杯規格：6-16盎司紙杯:20-50盎司紙碗（模具可調換），

Paper Cup Size:6-16 oz cup/20-50oz bowl(mold exchange able)

紙質原料：PE淋膜紙，以及其他類似淋膜紙（170-350）克；

Raw Material:PE paper,Varnishing Printed Paper,or other film coated paper(can be sealed by ultrasonic);Suitable paper weight:170-350gsm(recommend 250-300gsm)

生產速度：40-50只/分鐘

Rated Productivity:40-50 pcs/min

電源要求：220V50 HZ 和380 50HZ都可使用。

Power Source:220/50HZ,380/50HZor other required

總功率：4KW

Total Power:4KW

機器重量：1000KG

Total Weight:1000kg

外形尺寸：長*寬*高 2200*1100*1600mm

Pacakge Size(L*W*H)2200*1100*1600mm
