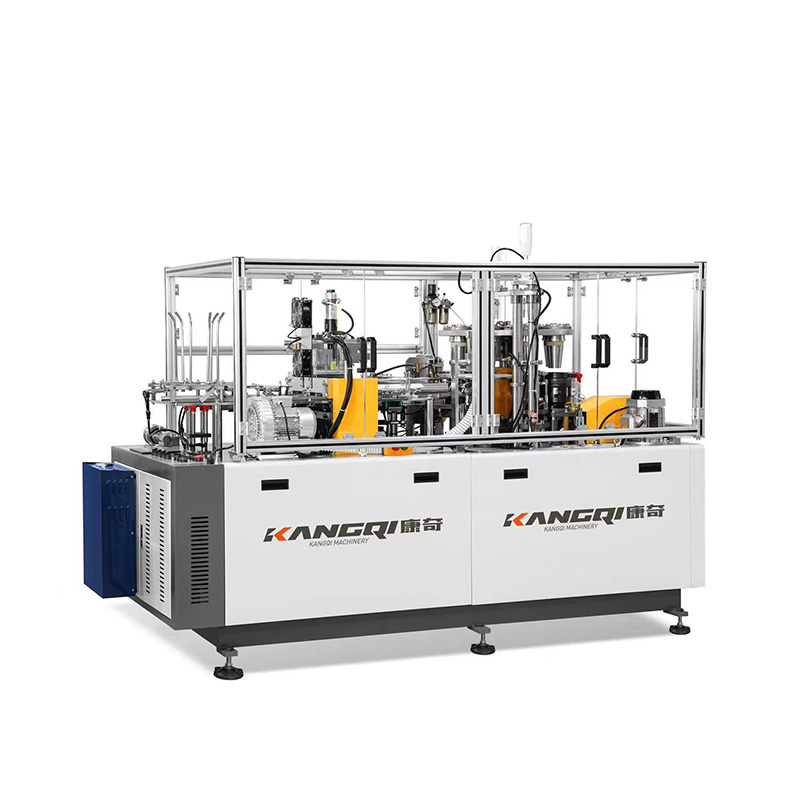

單盤中速12型紙杯成型機
發布日期:[2018-10-08] 點擊率:單盤中速12型紙杯成型機
ZS-12 Middle High speed Single Turn plate Paper cup making machine
技術參數
1.紙杯規格:4-16盎司
2.紙杯材料 :單雙面PE 淋膜紙(任意一種都可以)
3.紙張規格:210-380g/㎡
4.生產速度:75-85 pcs/min
5.電源:380V/220V 50Hz
6.總功率:6Kw
7.氣源:0.4m3/min
8.重量:2000Kg
9.包裝尺寸:2600 x 1150 x 1650mm
Technical Parameters:
1. Paper cup Size: 4-16 ounces
2. Paper cup material: single/double PE coated paper (any one can be used)
3. Paper raw material: 210-380g/m2
4. Production speed: 75-85 pcs/min
5. Power supply: 380V/220V 50Hz
6. Total power: 6Kw
7. Gas source: 0.4m3/min
8. Weight: 2000Kg
9. Packing size: 2600 x 1150 x 1650mm
中速單盤12型是由一個轉盤完成紙杯成型機,采用開放式間歇分度機構、齒輪傳動、同步帶傳動、縱軸結構、卷邊采用單獨升降結構、降低了主功能機構的行程、合理分布各個功能總成;整機采用定時定量油脂潤滑的方式,減低了機器零件的磨損;制杯過程PLC控制,采用光電傳感器監控,步進電機送料(有杯片送料,沒杯片不送料),從而提高設備性能,達到快速平穩運行,實現了故障自動停機,大大降低了工人勞動強度,提高了設備的安全穩定性。
The ZS-12Middle High speed Single Turn plate Paper cup making machine is a paper cup forming machine completed by a single turntable. It adopts an open intermittent indexing mechanism, gear transmission, synchronous belt drive, vertical axis structure, and a separate lifting structure for the curling, which reduces the stroke of the main functional mechanism. It has reasonable distribution of various functional assemblies. The whole machine adopts the method of regular quantity grease lubrication in time, which reduces the wearing of machine parts. Whole cup making process is controlled by PLC, with photoelectric sensor monitoring. The step motor control paper feeding(have paper then feeding, no paper, then no feeding). In order to improve the performance of the equipment, achieve fast and smooth operation, realize automatic shutdown of the fault, greatly reduce the labor intensity of the workers, and improve the safety and stability of the equipment.
通過簡化制杯工藝流程,送紙、粘合、上杯、送底、加熱、卷底、滾花、卷口、卸杯、檢測、自動計數收杯,是制作紙杯的最優選擇。
By simplifying the cup making process, feeding, adhesive, cupping, bottoming, heating, bottoming, knurling, curling, unloading, inspection, and automatic counting. Our machine is best choices for making paper cups.
